First prosthetic hand with tactile sensations and dexterity successfully implanted

  • Date

    Tue 5 Feb 19

Patient with implants

A breakthrough project involving pioneering surgery on a person with an amputated hand, to implant a prosthetic hand which offers tactile sensations and great dexterity, has involved researchers at the University of Essex.

The Swedish woman, who has an amputated hand, has become the first recipient of an “osseo-neuromuscular implant” which offers to control a dexterous hand prosthesis.

In a pioneering surgery, titanium implants were placed in the two forearm bones, from which electrodes to nerves and muscle were extended to extract signals to control a robotic hand and to provide tactile sensations. This makes it the first clinically viable, dexterous and sentient prosthetic hand usable in real life.

The new implant technology was developed in Sweden by a team lead by Dr Max Ortiz Catalan at Integrum AB – the company behind the first bone-anchored limb prosthesis using osseointegration – and Chalmers University of Technology. This first-of-its-kind surgery, led by Professor Rickard Brånemark and Dr Paolo Sassu, took place at Sahlgrenska University Hospital as part of a larger project funded by the European Commission under Horizon 2020 called DeTOP.

The DeTOP project is coordinated by Professor Christian Cipriani at the Scuola Superiore Sant’Anna, and also includes the University of Essex, Prensilia, the University of Gothenburg, Lund University, the Swiss Center for Electronics and Microtechnology, INAIL Prosthetic Center, Universitá Campus Bio-Medico di Roma, and the Instituto Ortopedico Rizzoli.

Dr Luca Citi
"Within the project, the Essex team contributed to the development of algorithms which could decode and understand the neuro-muscular signals from the user’s brain about what they intended to do and then send those commands to the robotic control of the prosthetic hand."
Dr Luca Citi Essex brain-computer interfaces and neural engineering laboratory

The University of Essex is one of the leaders in the UK for brain-computer interface research and scientists from the Essex Brain-Computer Interfaces and Neural Engineering Laboratory, at the University’s School of Computer Science and Electronic Engineering, were involved in the project.

Dr Luca Citi, who is leading the Essex side of the project, said: "Within the project, the Essex team contributed to the development of algorithms which could decode and understand the neuro-muscular signals from the user’s brain about what they intended to do and then send those commands to the robotic control of the prosthetic hand."

Conventional prosthetic hands rely on electrodes placed over the skin to extract control signals from the underlying stump muscles. These superficial electrodes deliver limited and unreliable signals that only allow control of a couple of movements (opening and closing the hand).

Richer and more reliable information can be obtained by implanting electrodes in all remaining muscle in the stump instead. Sixteen electrodes were implanted in this first female patient in order to achieve more dexterous control of a novel prosthetic hand developed in Italy by the Scuola Superiore Sant’Anna and Prensilia.

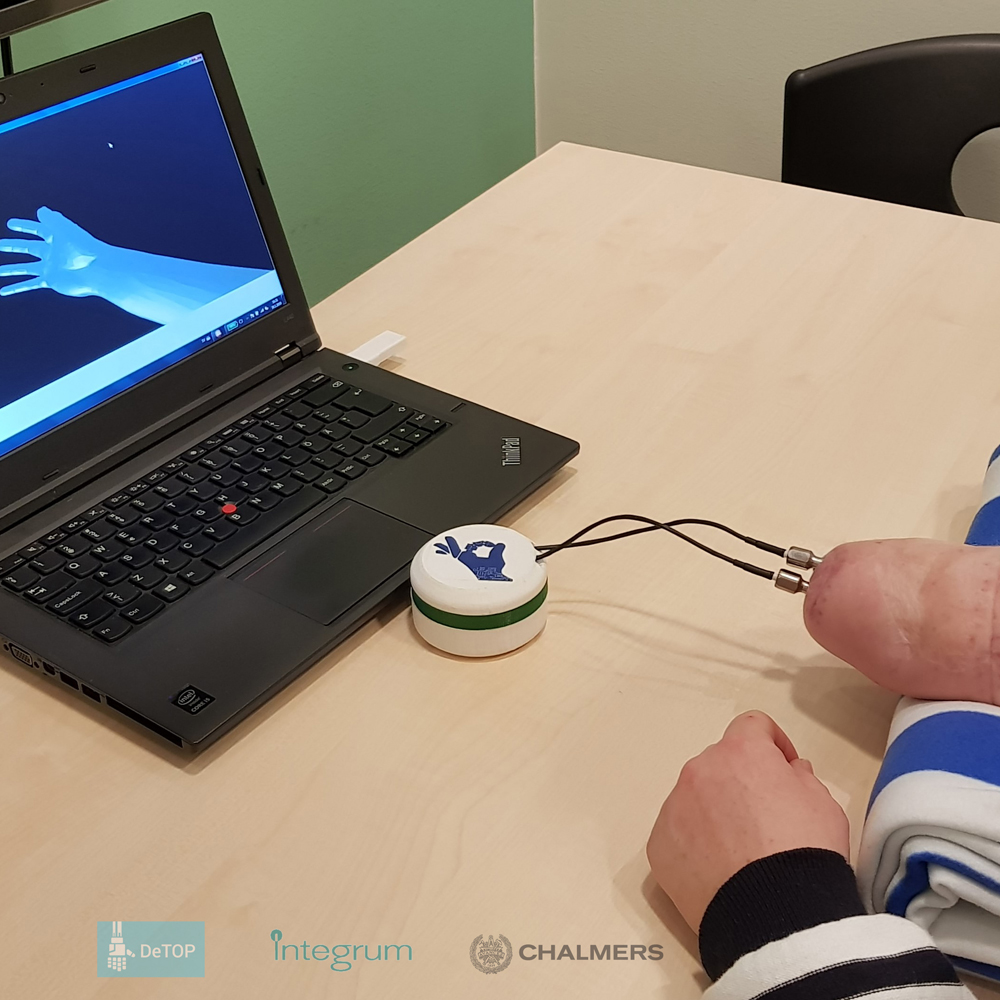

Patient using implant
Patient post-surgery using implant

Watch the video showing the patient relearning how to control her missing hand using virtual reality.

YouTube video link

Current prosthetic hands have also limited sensory feedback. They do not provide tactile or kinesthetic sensation, so the user can only rely on vision while using the prosthesis.

Users cannot tell how strongly an object is grasped, or even when contact has been made.

By implanting electrodes in the nerves that used to be connected to the lost biological sensors of the hand, researchers can electrically stimulate these nerves in a similar manner as information conveyed by the biological hand. This results in the patient perceiving sensations originating in the new prosthetic hand, as it is equipped with sensors that drive the stimulation of the nerve to deliver such sensations.

One of the most important aspects of this work is that this is the first technology usable in daily life. This means it is not limited to a research laboratory. The Swedish group – Integrum AB and Chalmers University of Technology – have previously demonstrated that control of a sentient prosthesis in daily life was possible in above-elbow amputees using similar technology.

This was not possible in below-elbow amputees where there are two smaller bones rather than a single larger one as in the upper arm. This posed several challenges on the development of the implant system. It also presents an opportunity to achieve a more dexterous control of an artificial replacement. This is because many more muscles are available to extract neural commands in below-elbow amputations.

Bones weaken if they are not used (loaded), as commonly happen after amputation. The patient is following a rehabilitation program to regain the strength in her forearm bones to be able to fully load the prosthetic hand.

In parallel, she is also relearning how to control her missing hand using virtual reality, and in few weeks, she will be using a prosthetic hand with increasing function and sensations in her daily life. Two more patients will be implanted with this new generation of prosthetic hands in the upcoming months, in Italy and Sweden.
